Dye Lasers DL-micro | EUR 3.500,– | | Miniature Dye Laser Module with 20 mm dye flow cell and external circulator. | |  | DL-micro G | EUR 4.450,– | | DL-micro with grating, 10× beam expander, sine drive, and mechanical wavelength counter. | |  |
| DL-micro | DL-micro G | | Tuning Rage | nm | 330...950 | 330...800 | | Efficiency * | % | 20/30 | 8/16 | | Linewidth | nm | broadband | < 0.1 | | ASE ** | % | — | < 0.3 | | Max. pump energy | mJ | 100 | 30 | | Divergency | mrad | 2 | 2 × 3 | | Dimensions | mm | 260 × 250 × 100 | | Weight | kg | 8 | 9 |
* at 470 nm (308 nm pump) / at 570 nm (532 nm pump)
** Amplified Spontaneous Emission |
| Laser has Lambda Physik compatible dye cell, pump optics mountsand cylindrical lens manipulator. |
Options for DL-micro- Cylindrical telescopes for YAG pumping (2.5×, 3.0× or 3.5×), AR 532 / 355 nm
| EUR | 480,– | - Output collimating lens with mount
| EUR | 95,– | - PC controlled Stepper Motor for wavelength tuning, including Driving Module and Software
| EUR | 1750,– |

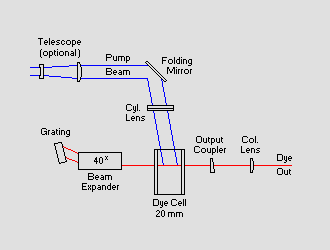

DL-compact |  | Small Dye Laser Module with pump optics, 20 mm dye flow cell and dye circulator. Littrow type cavity with 1800 gr/mm grating, 40× beam expander, sine drive and mechanical counter.
EUR 4.900,– |

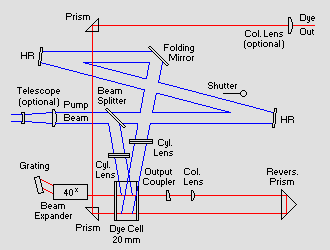

DL-compact P |  | DL-compact with oscillator & amplifier in one cell.
EUR 5.900,– |

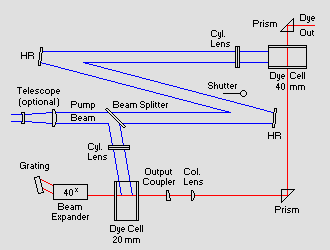

DL-compact A |  | DL-compact with additional amplifier (40 mm dye cell).
EUR 6.900,– |
| DL-compact | DL-compact P | DL-compact A | | Tuning range | nm | 330...800 | | Efficiency * | % | 7.5 / 15 | 10 / 20 | 15 / 30 | | Linewidth | nm | < 0.02 | | ASE | % | < 0.1 | < 0.5 | < 0.3 | | Max. pump energy | mJ | 30 | 100 | 300 | | Divergency | mrad | 2 × 3 | 1.5 | 1 | | Dimensions | mm | 430 × 430 × 100 | | Weight | kg | 12 | 12 | 14 |
* at 470 nm (308 nm pump) / at 570 nm (532 nm pump)
| | Laser has Lambda Physik compatible dye cell, pump optics mountsand cylindrical lens manipulators. |
Options for DL-compact- Cylindrical telescopes for YAG pumping (2.5×, 3.0× or 3.5×), AR 532 / 355 nm
| EUR | 480,– | - Output collimating lens with mount
| EUR | 95,– | - PC controlled Stepper Motor for wavelength tuning, including Driving Module and Software
| EUR | 1.750,– |
DL-midi |
EUR 19.250,– | | Pulsed Dye Laser with pump optics, Littrow type oscillator, ASE filtering system, 3 circulators with dye flow cells for oscillator and amplifiers, stepper motor control unit and software for PC. |
DL-midi E |
EUR 22.750,– | | DL-midi with PC controlled intracavity Fabry-Perot etalons (set of 3 pcs) and optical feedback for etalon / grating matching & scan. |
| DL-midi | DL-midi E | | Tuning Range | nm | 330...950 | 340...800 | | Efficiency * | % | 15 / 25 | 12.5 / 20 | | Linewidth | cm-1 | < 0.1 | < 0.03 | | ASE | % | < 0.1 | < 0.3 | | Abs. accuracy | nm | ± 0.03 | | Reproducibility | pm | ± 1 | | Divergency | mrad | 0.5 | | Dimensions | mm | 1080 × 320 × 260 | | Weight | kg | 50 |
* at 470 nm (308 nm pump) / at 570 nm (532 nm pump)
| | Laser has Lambda Physik compatible dye cells, pump optics mountsand cylindrical lens manipulators. |
Advanced Features: | - Narrow linewidth with and without intercavity etalon
- One grating for whole tuning range
- Presice sine drive with linear wavelength scan
- Spectral filter for depression of Amplified Spontaneous Emission
- Build-in light detector of the pump pulse
- Automatic etalon/grating matching & long scan
- Integrated wavelength calibration/stabilisation system (optional)
- Integrated self-adjusting doubling system (optional)
- User-friendly software
- Compact design
|

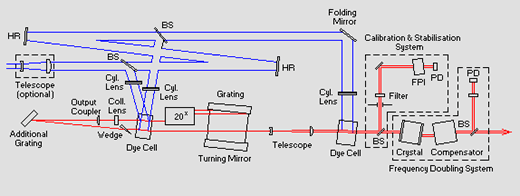

DL-mini |
EUR 18.250,– | | Narrow Band Dye Laser with grazing incidence cavity with pump optics, two circulators with dye flow cells for oscillator and amplifiers, stepper motor control unit and software for PC. |
DL-mini F |
EUR 19.750,– | | DL-mini with PC controlled spectral filter between oscillator and preamplifier. |
| DL-mini | DL-mini F | | Tuning Rage | nm | 330...950 | | Efficiency * | % | 16/30 | 15/28 | | Linewidth | cm -1 | < 0.8 | | ASE | % | < 0.5 | < 0.1 | | Abs. accuracy | nm | ± 0.05 | | Reproducibility | pm | ± 1 | | Dimensions | mm | 0.5 | | Divergency | mrad | 1080 × 320 × 260 | | Weight | kg | 50 |
* at 470 nm (308 nm pump) / at 570 nm (532 nm pump)
| | Laser has Lambda Physik compatible dye cells, pump optics mountsand cylindrical lens manipulators. |
Advanced Features: | - Narrow linewidth
- One grating for whole tuning range
- Presice sine drive with linear wavelength scan
- Spectral filter for depression of Amplified Spontaneous Emission
- Build-in light detector of the pump pulse
- Integrated wavelength calibration/stabilisation system (optional)
- Integrated self-adjusting doubling system (optional)
- User-friendly software
- Compact design
|
|
